1. Extruder: 1 set
(1) Screw dia.: 105mm; Rotation speed: 0~80rpm,
(2) L:D: 30:1; Material of screw: 38CrMoALA; The screw is special design for PET bottle flakes and PET granular.
(3) Hard tooth reducer: Jiangsu Haoke Gearbox.
(4) RKC Pressure automatic feedback system which can adjust the screw speed automatically
(5) Melt filter: 3.5m2 double position filter changer
(6) Pressure sensor and gauges: Shanghai Zhaohui
(7) Equip magnet base with window.
(8) Equip one color dosing system.
(9) 100cc Metering pump:1 set
(10) Driving power of metering pump: 3.7kw,0-45 rpm
(11) Heater: Electric heating ring.
(12) Spinneret device: 1 Set
(13) Nozzle: 2 pieces with the disassembly support
2. Cooling Water Tank:1 set
(1) The tank is made by Stainless Steel 316.
(2) The height of tank is adjustable and the horizontal pushing structure is conveniently to disassembly the spinneret.
(3) Use big window with double spotlight.

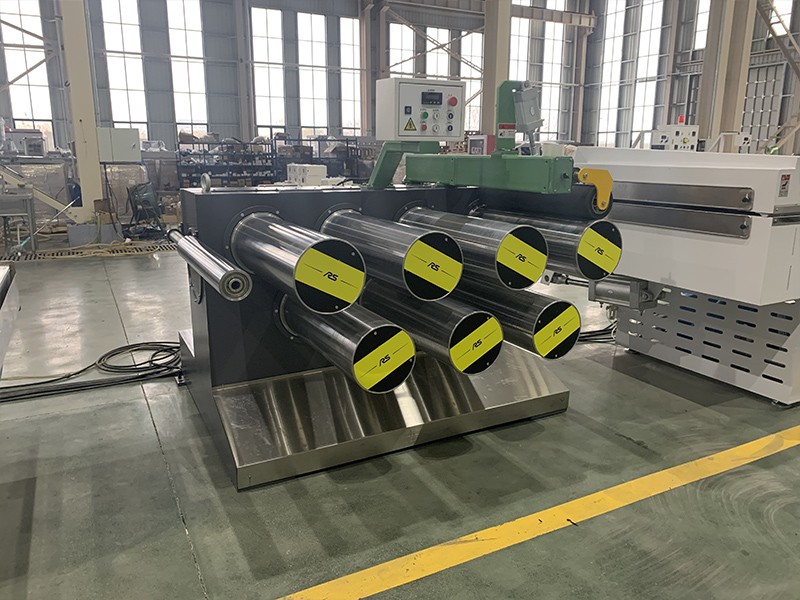

3. Seven roller Stretching unit A, 0-40m
(1) Roller size: φ270×750×7,
(2) Power of motor: 7.5KW
(3) Steel cabinet with accurately grind gear makes the roller run smoothly.
(4) Driving motor and reducer is from Jiangsu Guomao Reducer Co., Ltd.
(5) Built-out oil lubrication system which makes the gears run steady.
(6) Equip single pressing roller
(7) The center height is 1100mm
4. Hot water Tank:1 set
(1) Size (L×W×H) : 4000×800×1100 mm
(2) Heating power: 35KW; Electrical heating, the heating pipe are in the tank.
(3) Material is stainless steel 304 with heat preservation.
(4) Equip brush for water removal.
(5) Equip one moisture absorption device: 4KW
6. Seven rollers stretching unit B: 0-160m
(1) Roller size: φ270×750×7,
(2) Power of motor: 15KW
(3) Steel cabinet with accurately grind gear makes the roller run smoothly.
(4) Driving motor and reducer is from Jiangsu Guomao Reducer Co., Ltd.
(5) Built-out oil lubrication system which makes the gears run steady.
(6) Equip one pressing rollers
(7) The center height is 1100mm

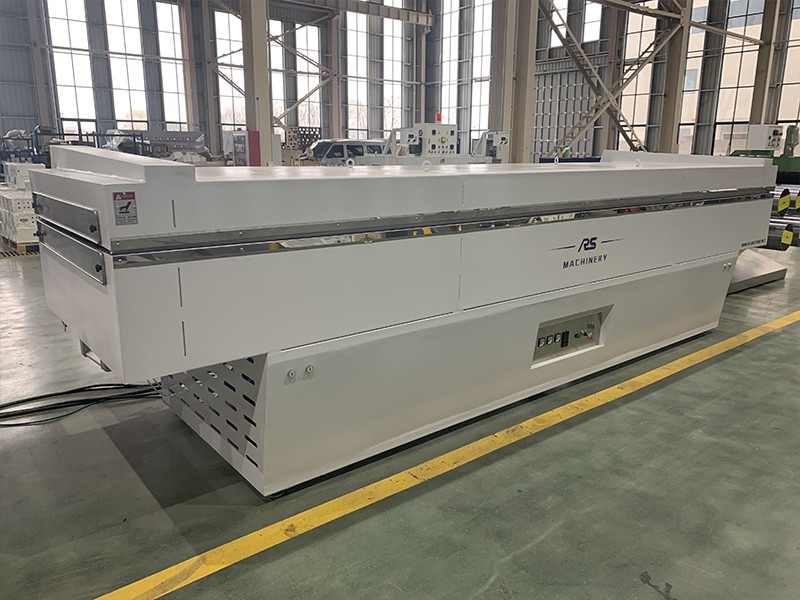

7. Single layers hot blast stretching oven: 1 set
(1) Fan power: 2.2KW×2 sets.
(2) Heating power: 23KW
(3) Oven length: 4300 mm
(4) Special design of hot air channel which make the temperature evenly.
8. Seven rollers stretching unit C: 0-180m
(1) Roller size: φ270×750×7
(2) Power of motor: 15KW
(3) Steel cabinet with accurately grind gear makes the roller run smoothly.
(4) Driving motor and reducer:Jiangsu Guomao Reducer
(5) Built-out oil lubrication system which makes the gears run steady.
(6) Equip single pressing roller
(7) The center height is 1100mm
9. Single layers hot blast setting oven: 1 set
(1) Fan power: 2.2KW×2 sets,
(2) Heating power: 23KW
(3) Oven length: 5000 mm
(4) Special design of hot air channel which make the temperature evenly.
10. Seven rollers stretching unit D
(1) Roller size: φ270×750×7
(2) Power of motor: 7.5KW
(3) Steel cabinet with accurately grind gear makes the roller run smoothly.
(4) Driving motor and reducer is from Jiangsu Guomao Reducer Co., Ltd.
(5) Built-out oil lubrication system which makes the gears run steady.
(6) Equip single pressing roller
(7) The center height is 1100mm
11. Lubricating system: 1 set
(1) Motor and reducer are from Taiwan CPG
12. Waster yarn collectors: 1 set
(1) Torque motor power: 80KG.cm
13. Winding collector:80 spindles
(1) Tube size according to the customer’s requirements.
(2) The frame transmission is frequency control, driving motor: 2.2kw
(3) Winding motor: 15KG
(4) Each spindle has on/off switch. Each screen has one voltage regulator.
(5) The winder is back to back type.
total capacity: 340KW,
total dimension: 41.5×2.5×2m,
total weight: 25T
